Hard Capsule Liquid Filling Banding Production Line

  • Hard Capsule Liquid Filling Banding Production Line
  • Hard Capsule Liquid Filling Banding Production Line
  • Hard Capsule Liquid Filling Banding Production Line
  • Hard Capsule Liquid Filling Banding Production Line

Hard Capsule Liquid Filling Banding Production Line

    Unit Price: 4000~137000 USD
    Min. Order: 1 Set/Sets
    Packaging: Standard export wooden case, Optional fumigated wooden case
    Transportation: Ocean,Land,Air
    Supply Ability: 5 Set/Sets per Week
    Port: Shanghai,Ningbo,Tianjin

Product Description

Products Description



YNJP&CBM MODEL

YNJP series capsule filling machine is used to encapsulate oil based liquid product in gelatin capsules. Empty capsules are loaded into the capsule hopper where they are fed into the magazine. Capsules initially enter the magazine un-oriented. From the magazine, the capsules enter the sorting block where they are properly oriented (smaller end on the bottom). The capsules are then separated by vacuum. On next fibre sensor checking station, segments holes are checked by fibre sensors to know if the capsules are missing in the segments. When the capsules are moved to filling station, ceramic pumps will fill product into capsule body, specify ceramic pump will not work while the segments holes to fill is missing with capsule body. Unseparated capsules will be rejected on next rejecting station to dust collector. Capsule body and cap are then joined together on closing station. The finished capsule is discharged as the final step.

CBM series capsule banding sealing machine is used to seal capsules with a band of gelatin after filling. Banding capsules is to prevent liquid leakage and longer shelf life. The features are as follow:
- Capsule orienting, placing system
- Double wheel gluing structure
- Movable glue bin for easy cleaning
- Independent gelatin storage tank with heating
- Automatic capsule transferring system from capsule filling machine
- Vertical drying system for long time drying

Model
YNJP
CBM
Applicable Product
Oil Based Solution And Suspension
1
Capsule Size
Capsule size 00# - 2#
Max. Output
18000-36000 Capsules/Hour
Motor Power
8.9kw
Power Supply
AC 220V/380V; 50/60Hz; 3 Phase
Noise
≤75dBA
Dimensions
870×1090×2100mm
2460×920×1900mm
Weight
850kg
1000kg
Company Profile
Zhejiang Fuchang Machinery Co., Ltd., founded in 1995, is the professional pharmaceutical machinery manufacturer combining with research, manufacture, sale and service.
The company’s leading products include the NJP series of automatic capsule filling machines, the RG series of softgel
encapsulation production line and the automatic Hard Capsule liquid-filling and banding sealing production line. Systematic services including equipment production, customization, R&D, installation, commissioning and maintenance have been provided for customers in more than 130 countries and regions.

FACTORY

With the title of National High-Tech Enterprise and 52 patents, the company is the rulemaking department of “Made in Zhejiang" product standard for hard capsule and softgel. The products have obtained “Zhejiang Province High & New Tech Product” and “Nation Key New Product” certificates, and have been included in National Torch Plan Project. The company also has ISO9001:2015 International Quality System Certification, CE Certification, and has become one of the world-class Chinese pharmaceutical equipment manufacturing industries.

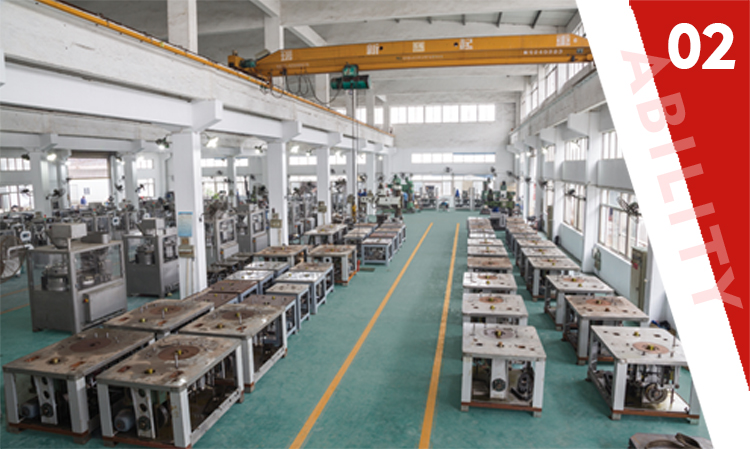

ABILITY

The company is in possession of dozens advanced program-controlled machining centers, CNC lathes and other processing equipment, and has a professional and stable technical team to support product development and production. 168 employees including eight senior engineers and twelve professional R&D technicians, and fifteen after-sales service technicians.
Packaging & Shipping

ZHEJIANG FUCHANG MACHINERY CO., LTD.

  • 1
  • 2
  • 3
  • 4


Zhejiang Fuchang Machinery Co., Ltd. was founded in 1995. We are professional pharmaceutical machinery manufacturer in China, and appraised for national-level [High & New Tech Enterprise", which combined with research, manufacture, sale and service. Our products gained the certification of [Zhejiang Province High & New Tech Product" and [Nation Key New Product", and listen into National Torch Plan project. We have 8 senior engineers and 15 middle-level technicians, who has more than 20 years experience in pharmaceutical industry. We have more than 40 sets machine tools, including program control machining center, digital control lathe, digital control electric-light line-incision lathe etc. We adopt CAM enable to ensure machining precision and interchange of product. We have the ISO9001:2015 International Quality System Certification, UKAS Certification, CE Certification, and 39 Patents including 2 patent of invention and 37 patent of utility model, to guarantee high quality products for our clients.

Our main products including NJP series full automatic capsule filling machine, and RG series soft gelatin encapsulation production line. Our products covers more than 30 provinces in China, and exported to more than 100 countries and districts such as North America, South America, Western Europe, Eastern Europe, Australia, Western Africa, South Africa, Middle East, and Southeast Asia etc. We won a good reputation, and set up the good enterprise image.

NJP Series Full Automatic Capsule Filling Machine

Complete varieties and specifications, leading technology. In each capsule, it can be filled with powder, and micro pill separately or mixed. It also have features as follow: small volume, low noise, smooth operation, accurate filling dose, easy to clean, perfect in performance etc. and the sales are far ahead in domestic.

YNJP Series Automatic Capsule Liquid-filling & Banding Sealing Production Line

Applicable for oil based solution and suspension, total enclosure central turret for easy cleaning, fiber sensor detecting missing capsule to prevent material waste, double gluing system ensure banding quality, and vertical drying system with high drying efficiency.

RG Series Soft Gelatin Encapsulation Production Line

Specifications is complete, adapt to institute, laboratory test, small batch production for pharmaceutical factory, and three-shift mass production for large and medium enterprises. Technology is leading, low lubricating oil consumption, and non-printed soft gelatin capsule can avoid cleaning. It adopts tray to drying, so low investment, save energy, good surface for finished product, stable solubility. Combined double-layer tumble dryer can be available for compact workshop arrangement to save space. It is no bubble during melting, to shorten the time, delay reduction of gelatin viscosity and frozen force. Keeping in mind the filling of Chinese herbal medicine and the water-soluble contents, our research staffs have breakthrough progress in the adaptability of by hard work. We free provide process analysis pre-sale, equipment layout and installation, technical training after-sale etc. the start-to-finish service.
